Name: Nbr Sealing M12 Pt100 Water Pump Temperature Switch
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: এসটিএস
Price: 403.00 USD
Availability: InStock

বাড়ি > পণ্য > Electronic Digital Temperature Switch >

Nbr Sealing M12 Pt100 Water Pump Temperature Switch

PT100 Water Pump Temperature Switch

M12 Water Pump Temperature Switch

NBR Sealing Digital Temperature Switch

উৎপত্তি স্থল:

হেফেই, সিএন

পরিচিতিমুলক নাম:

WNK

সাক্ষ্যদান:

মডেল নম্বার:

এসটিএস

আমাদের সাথে যোগাযোগ করুন

একটি উদ্ধৃতি অনুরোধ করুন

Nbr Sealing M12 Pt100 Water Pump Temperature Switch

Product Details

তাপমাত্রা পরিসীমা:

-50...200C~260C

ইনপুট:

PT100, PT1000

প্রক্রিয়া সংযোগ:

G 1/2 M12(5pin,8pin)

অ্যানালগ আউটপুট:

4-20mA

ডিজিটাল ফলাফল:

পিএনপি, এনপিএন

এনালগ নির্ভুলতা:

0.5%fs

সিলিং:

এনবিআর

কাজের তাপমাত্রা:

-30-80C

প্রদর্শন:

OLED

বিশেষভাবে তুলে ধরা:

PT100 Water Pump Temperature Switch

M12 Water Pump Temperature Switch

NBR Sealing Digital Temperature Switch

Payment & Shipping Terms

ন্যূনতম চাহিদার পরিমাণ

1 পিস

মূল্য

negotiable

প্যাকেজিং বিবরণ

সমুদ্র-যোগ্য প্যাকিং বা বায়ু-যোগ্য প্যাকিং

ডেলিভারি সময়

5-8 কাজের দিন

পরিশোধের শর্ত

টি/টি, ওয়েস্টার্ন ইউনিয়ন

যোগানের ক্ষমতা

প্রতি মাসে 5000PCS

PT100 Electronic Digital Temperature Switch With PNP + 4~20mA + Modbus Output

সেরা দাম পান

OLED Display Type Electronic Digital Temperature Switch And Transmitter

সেরা দাম পান

4-20ma PT100 PT1000 Electronic Digital Temperature Switch

সেরা দাম পান

Nbr Sealing M12 Pt100 Water Pump Temperature Switch

সেরা দাম পান

আমাদের সাথে যোগাযোগ করুন

এখনই যোগাযোগ করুন

Product Description

PT100 PT1000 Temperature Switch Water Pump Temperature Switch

Description

WNK temperature switch (STS) is suited for temperature monitoring, measurement and control, such as used in cleaning liquid, hydraulic oil, heat-carrying agent and lubricant etc. The STS provides optional two switching outputs (PNP or NPN), an analog output signal (0...20mA| 4…20 mA or 0...5V| 0…10 V) as well as with RS485 Link.

Specifications

Product name	Electronic Smart Temperature Switch
Measuring range	-50260ºC
Accuracy	≤±0.5ºC
Supply power	1230V DC
Temp. Measuring element	PT1000
Reponse time	< 10ms
Temp. drift	±0.15%/10K
Resolution	±0.01ºC
Analog output accuracy	≤±0.2%FS
Output configurations	2×PNP + 0V~5VDC/10VDC + MODBUS
Output configurations	2×PNP + 0mA/4mA~20mADC + MODBUS
Switch current	1.0A(Max.)
Switching type	Normally open / closed (settable)
Switching reponce time	<10ms
Swith delay	0.00s~1000.0s

Feature:

Support PT100 or PT1000 input
Current output is 4~20mA+2PNP+MODBUS; voltage output is 0~5V/10V+ 2PNP+ MODBUS
Switching points settable
Analog output span settable
OLED self-luminous display
Display reversing 180°
Switching can be set normally open / normally closed
Housing with electrical connection against process connection rotatable 330°
Displaying temperature peak value and environment temperature
Parameters setting for Password protection
MODBUS protocol optional

Technical Data:

Product name	Electronic Smart Temperature Switch
Measuring range	-50260ºC
Accuracy	≤±0.5ºC
Supply power	1230V DC
Temp. Measuring element	PT1000
Reponse time	< 10ms
Temp. drift	±0.15%/10K
Resolution	±0.01ºC
Analog output accuracy	≤±0.2%FS
Output configurations	2×PNP + 0V~5VDC/10VDC + MODBUS
Output configurations	2×PNP + 0mA/4mA~20mADC + MODBUS
Switch current	1.0A(Max.)
Switching type	Normally open / closed (settable)
Switching reponce time	<10ms
Swith delay	0.00s~1000.0s

Ordering sheet:

Product Show

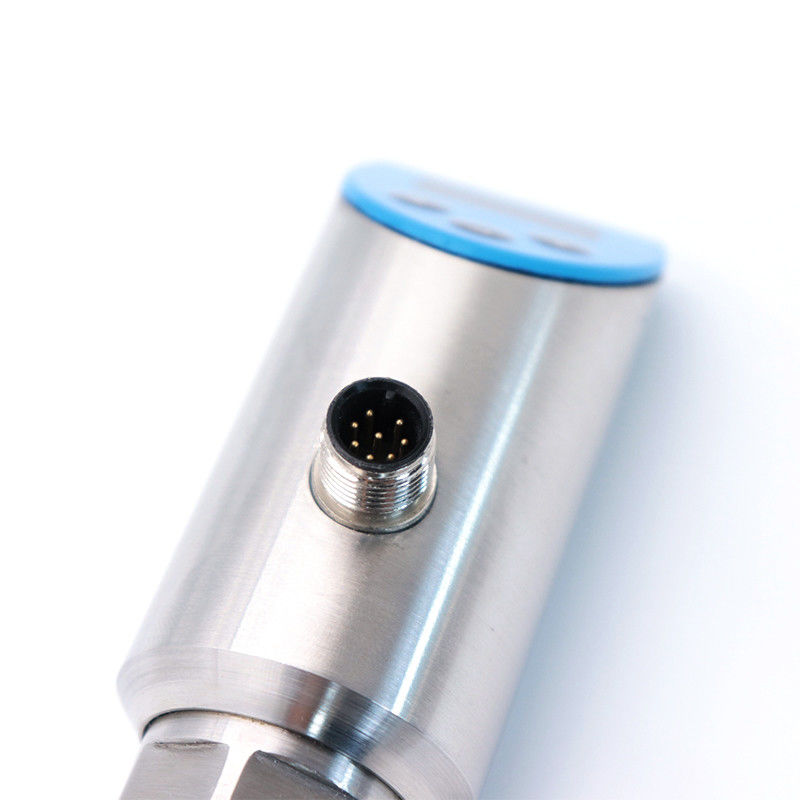

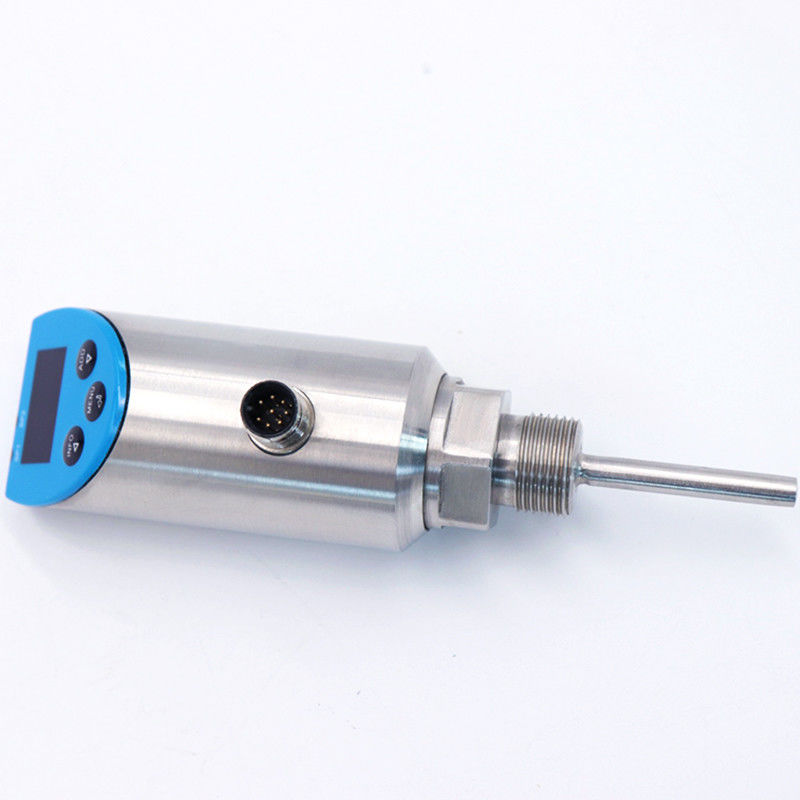

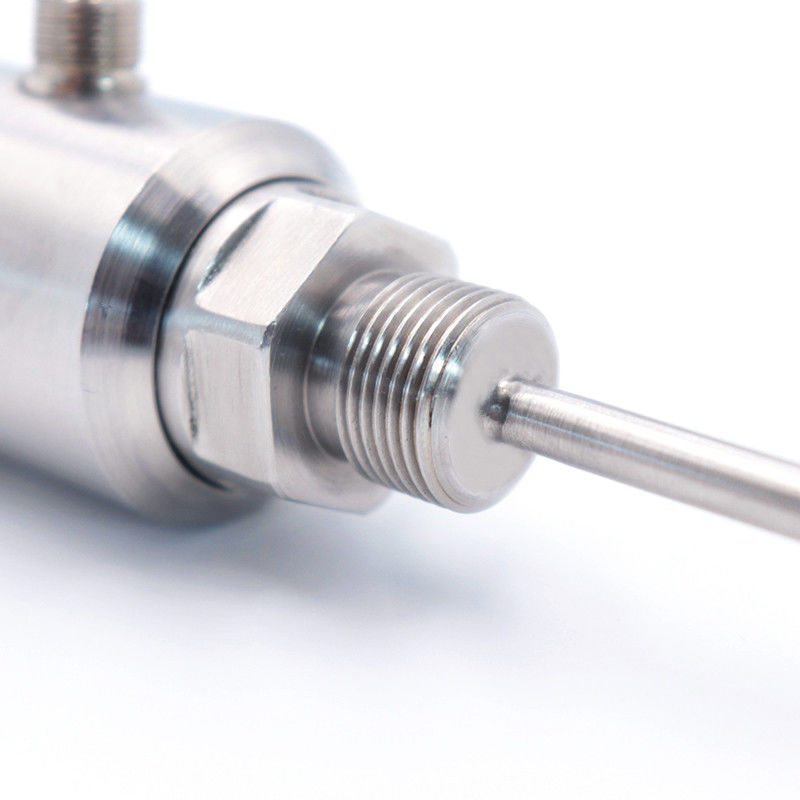

Nbr Sealing M12 Pt100 Water Pump Temperature Switch 1

Company Information

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea.
