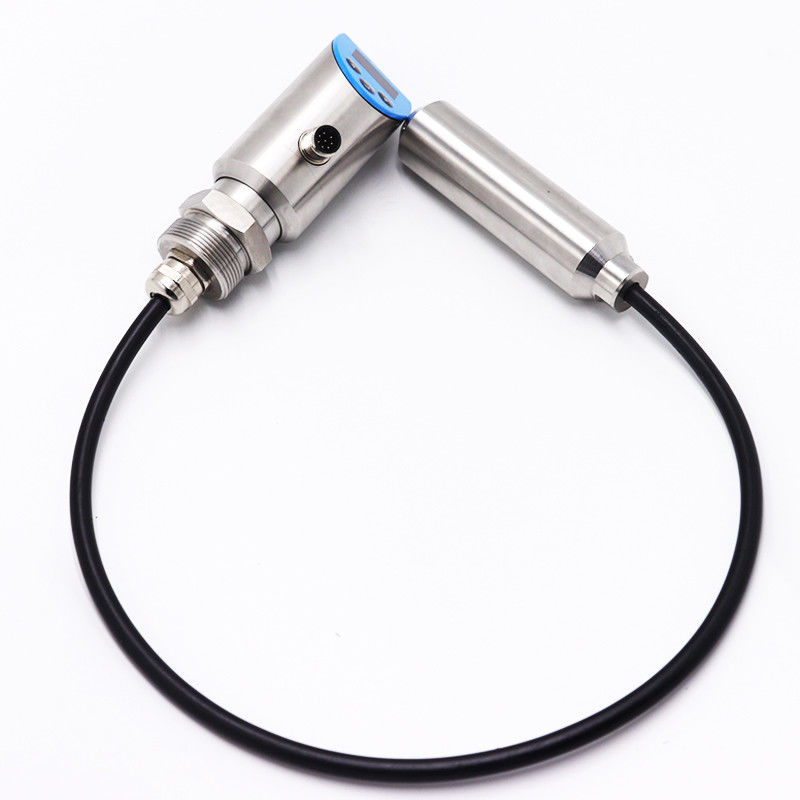

Name: Modbus RS485 Electronic Water Level Switch For Water Tank High Light Switch Indicating
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNKSLS
Price: 403.00 USD
Availability: InStock

বাড়ি > পণ্য > Electronic Digital Level Switch >

Modbus RS485 Electronic Water Level Switch For Water Tank High Light Switch Indicating

liquid level switch

industrial level switch

Modbus RS485 Electronic Water Level Switch

উৎপত্তি স্থল:

চীন

পরিচিতিমুলক নাম:

WNK

সাক্ষ্যদান:

মডেল নম্বার:

WNKSLS

আমাদের সাথে যোগাযোগ করুন

একটি উদ্ধৃতি অনুরোধ করুন

Modbus RS485 Electronic Water Level Switch For Water Tank High Light Switch Indicating

Product Details

চাপ পরিসীমা:

0-1 থেকে 100m H2O

এনালগ:

0-5V,0-10V,4-20mA

ডিজিটাল:

RS485

সুইচিং টাইপ:

সাধারণত খোলা, সাধারণত বন্ধ

স্যুইচিং বর্তমান:

MAX 1.0A

সময় উত্তর:

<10 মি

মোশন মডেল:

বিলম্ব বা উইন্ডোজ মডেল

বিশেষভাবে তুলে ধরা:

liquid level switch

industrial level switch

Modbus RS485 Electronic Water Level Switch

Payment & Shipping Terms

ন্যূনতম চাহিদার পরিমাণ

1 পিস

মূল্য

negotiable

প্যাকেজিং বিবরণ

স্ট্যান্ডার্ড এক্সপোর্ট প্যাকেজিং

ডেলিভারি সময়

5-8 কার্যদিবস

পরিশোধের শর্ত

L/C, D/A, D/P, T/T

যোগানের ক্ষমতা

প্রতি সপ্তাহে 2000 পিস

0 - 10V RS485 Electronic Digital Level Switch With OLED Indicator High Precision

সেরা দাম পান

Modbus RS485 Electronic Water Level Switch For Water Tank High Light Switch Indicating

সেরা দাম পান

Normally Closed RS485 Electronic Digital Level Switch 0-20mA RS485 Output

সেরা দাম পান

OLED Electronic Digital Level Switch Water Indicator For Hydraulic Fluid

সেরা দাম পান

আমাদের সাথে যোগাযোগ করুন

এখনই যোগাযোগ করুন

Product Description

Modbus RS485 Electronic Water Level Transmitter Switch for Water Tank

1. Liquid and oil media level measurement
2. Switching points settable
3. Switching can be set normally open / normally closed
4. Analog output span settable
5. High light switch indicating
6. OLED self-luminous display
7. Display turnable 180°
8. Housing with electrical connection against process connection rotatable 330°
9. Media density settable

Smart Electronic Level Switch with OLED Display
Model No.	SLS
Measuring range	0…1mH2O to 100mH2O
Accuracy	≤0.5%FS
Supply power	12...30VDC
Temperature error within rated temp range	±0.02%FS/℃ (Zero/full span)
Long-term stability	±0.3%FS/year
Analog output accuracy	±0.2%FS
Output configurations	switching+voltage+ communication: 2×PNP + 0V~5VDC/10VDC + MODBUS
Output configurations	switching+current+ communication: 2×PNP + 0mA/4mA~20Madc + MODBUS
Switching current	1.0A(Max.)
Switching type	normally open , normally closed
Switching respond time	<10ms
Switching delay	0.00s~1000.0s
Switching motion mode	delay or windows mode
Analog signal output and maximum ohmic load RL	Current output: 0/4…20mA,20…4/0mA RL≤0.5kΩ
Analog signal output and maximum ohmic load RL	Voltage output: 0…5/10V,5/10…0V RL>10kΩ
Screen display	OLED
Switching indicator	2X red LED
Displaying pressure units	psi,bar,mbar,Pa,kPa,MPa
Working temperature	-30℃~80℃
Media temperature	-30℃~80℃
Storage temperature	-40℃~80℃
Electromagnetism compatible	GB/T 17626.2/3/4-2006
Shock resistance	≤10g/10Hz...500Hz(IEC 60068-2-6-2007)
Vibration resistance	≤50g/11ms(IEC 60068-2-27-2008)
IP rating	IP65

Hot Product

Modbus RS485 Electronic Water Level Switch For Water Tank High Light Switch Indicating 3

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea.
