Industrial Air Pressure Sensor -40 -135C Working Temperature For HVAC

air pressure transmitter

mini pressure sensor

উৎপত্তি স্থল:

হেফেই, চীন

পরিচিতিমুলক নাম:

WNK

সাক্ষ্যদান:

CE, SGS, ISO9001

মডেল নম্বার:

Wnk80ma

আমাদের সাথে যোগাযোগ করুন

একটি উদ্ধৃতি অনুরোধ করুন

Industrial Air Pressure Sensor -40 -135C Working Temperature For HVAC

Product Details

চাপ পরিসীমা:

-1 বার - 60 এমপিএ

আউটপুট:

I2C, SPI, 0.5-4.5V, 4-20ma এবং অন্যান্য

সময় উত্তর:

≥1 মি

মাঝারি তাপমাত্রা:

-40 -70

ওয়ারেন্টি:

1 বছর

নির্ভুলতা:

0.25%FS, 0.5%FS 1.0%FS

আইপি সুরক্ষা:

IP65 IP67

বৈদ্যুতিক সংযোগ:

প্যাকার্ড, M12x1, Mini DIN43650, অন্যান্য

বিশেষভাবে তুলে ধরা:

air pressure transmitter

mini pressure sensor

Payment & Shipping Terms

ন্যূনতম চাহিদার পরিমাণ

5 টুকরা

মূল্য

negotiable

প্যাকেজিং বিবরণ

সমুদ্র-যোগ্য প্যাকিং বা বায়ু-যোগ্য প্যাকিং

ডেলিভারি সময়

7-10 কার্যদিবস

পরিশোধের শর্ত

টি/টি, ওয়েস্টার্ন ইউনিয়ন, মানিগ্রাম

যোগানের ক্ষমতা

প্রতি মাসে 5000 পিসি

Mini Gas Pressure Transmitter Air Pressure Transducer With Customized Electrical Connection

সেরা দাম পান

ভিডিও

High Accuracy Air Pressure Sensor Packard Connector For Water Tank

সেরা দাম পান

ভিডিও

Brass Cable Outlet Air Pressure Transducer Sensor 15mA Max Current

সেরা দাম পান

ভিডিও

0-2000 KPa Air Pressure Sensor Anti - Corrosion And Vibration Resistance

সেরা দাম পান

আমাদের সাথে যোগাযোগ করুন

এখনই যোগাযোগ করুন

Product Description

Industrial Pressure Sensor -40 -135C Working Temperature For HVAC

Name: Industrial Air Pressure Sensor -40 -135C Working Temperature For HVAC
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: Wnk80ma
Price: 20.00 USD
Availability: InStock

WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its anti-overload capacity is up to 100 times of the range, completely solved poor overload in small range of other sensors. WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.

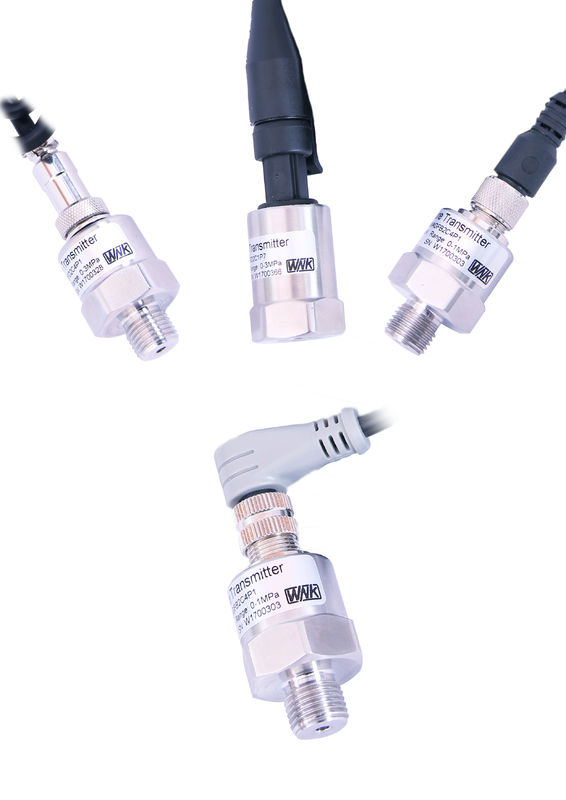

Industrial Air Pressure Sensor -40 -135C Working Temperature For HVAC 0

Applications

- Automobile, Compressor and Refrigeration Industry

- Engineering machinery

- Pressure control and monitor

- Water treatment system

- Hydraulic and Pneumatics

- HAVC and BAS Control

- Pump, fitness equipment, household appliances

- Factory Automation

- Fluid Control and Instrumentation Systems

Features :

1. Temperature range: -20 to 85℃
2. Wide operation temperature range -40~125℃
3. High performance ceramic capacitive pressure sensor
4. Various 4~20mA/0.5~4.5V/1~5V/ 0~5V/ SPI/ I²C outputs available
5. Small dimensions, dimension customizble
6. Optional packard, M12, Small Hirschman connectors
7. OEM, ODM, customization service available
8. Process connector: G1/4, M12*1.5, 1/4NPT, 7/16-20UNF female

Technical Data

Input
Pressure Type	Gauge Pressure , Absolute Pressure, Sealing Pressure
Pressure Range	-100Kpa - 60Mpa
Accuracy	0.2%, 0.5%
Power Supply	5VDC, 12-32VDC
Measuring Media	Gas, Steam, Liquid, Oil
Output
Analog	4-20mA, 0.5-4.5V / 1-5V / 0-5V
Digital	I²C, SPI
Operation Condition and Temperature
Compensation Temperature	-20...75℃
Storage Temperature	-45 ... 85℃
Ambient Temperature	-45 ... 85℃
Medium Temperature	-40 ... 125℃
Material and Protection
Ingress Protection	IP65, IP67
Housing Material	304SS, 316L

Company Information

Factory

Exhibition

Our Certificate

Industrial Air Pressure Sensor -40 -135C Working Temperature For HVAC 7

FAQ

Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer since 2004.

Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.

Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.

Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome

Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.

Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
